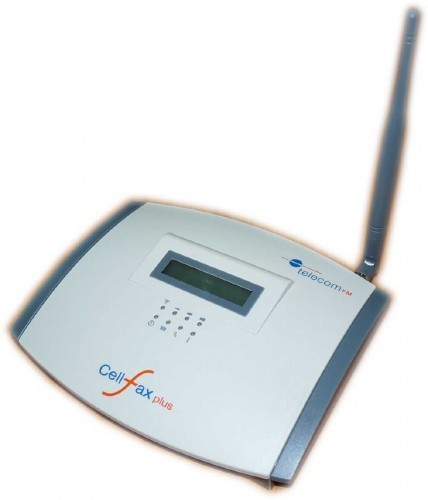

Cellfax Plus

Telephony Interface

- Call Control DTMF
- Open Circuit Voltage 63V on hook
- Line impedance 600 ohm
- Ring Load REN 3
- CLIP ETSI / Bellcore Standards

GSM Interface

- GSM Module Siemens MC39i
- Bands E-GSM 900MHz
- GSM 1800MHz
- Transmit Power Class 4 (2W) for E-GSM 900MHz
- Class 1 (1W) for GSM 1800MHz
- Speech Codecs Half Rate (HR)
- Full Rate (FR)
- Enhanced Full Rate (EFR)

Physical Interfaces

- Phone Port RJ11 Socket to connect Analogue Telephone or PBX Trunk
- Fax Port RJ11 Socket to connect Analogue Group 3 Fax Machine
- PSTN Port RJ11 Socket to connect Analogue PSTN line
- Serial Port RJ45 Socket to connect PC via RS232 Serial Port for Data
- LAN Port 10/100M Autosensing RJ45 Ethernet Port to connect PC or Network for SMS
- GSM Antenna Male TNC Connector
- SIM Card 3V Small card
- Indication Single line LCD Display
- 8 x LED Display for Signal Strength, Connections and Operation Status

Data Rates (Network Dependent)

- GPRS Class 10 - Max. 85.6 kbps Download
- CSD V.110 - Max. 14.4 kbps

Features Overview

- Make and Receive Voice Calls via POTS Phone or PBX Trunk Port
- Make and Receive Voice Calls via PBX Extension Port
- Call Waiting
- Three Party Conference Calling
- Phonebook
- Fax Sending and Receiving via Analogue Group 3 Fax machine
- Fax Sending and Receiving via PC Fax
- Caller Line ID Presentation
- GPRS Data via PC Serial port (Network dependent)
- Dialled Number substitution / modification
- SMS Sending and Receiving via Web Interface (using LAN Port)
- SIM lock
- Network lock
- Hotline automatic number dialling
